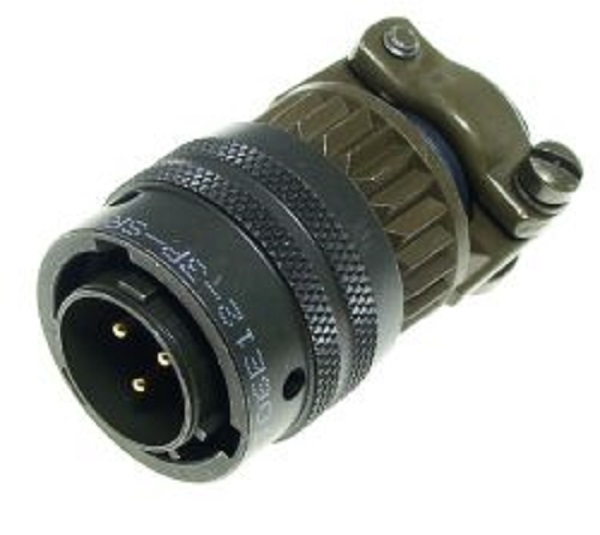

کانکتور نظامی 3 پین نرگی

Specification:	MIL-DTL-26482
Sealing:	Sealed
Shielding:	Yes
Connector Type:	Circular
Connector Style:	Plug
Mounting Type:	Cable
Contacts, # of:	3
Contact Style:	Pin
Termination Method:	Solder

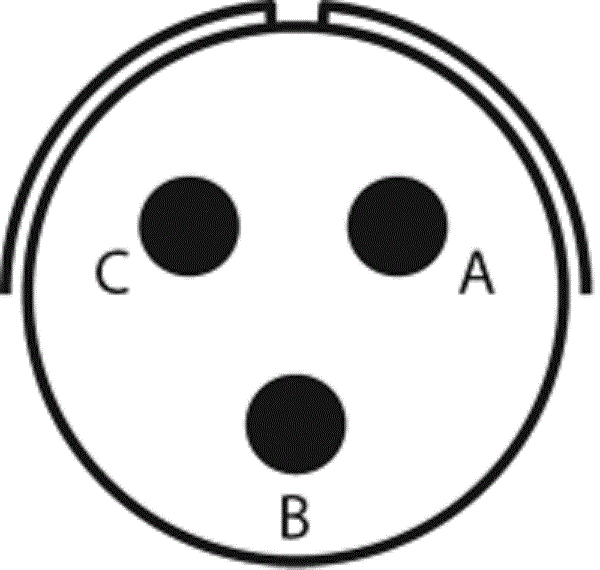

Insert Arrangement:	12-3
Contact Size:	3#16
Contacts Supplied:	Yes
Contact Material:	Copper Alloy
Contact Plating:	Gold
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Cadmium
Shell Color:	Olive Drab
Insert Material:	Neoprene
Grommet & Seals Material:	Neoprene
Amperage Rating:	22A
Operating Voltage AC V RMS Max:	1000
Operating Temperature °F (°C):	-67 to +257 (-55 to +125)
Contact Mating Life:	500
Insert Rotation/Keying:	Normal
Operating Voltage DC:	1400
Orientation:	Straight
Service Rating:	II
Endbell Type:	Grommet Nut
Export Class:	EAR / EAR99
RoHS:	No
Weight (lbs):	0.06703
Weight (g):	30.40890
